Cork Pads with Adhesive for Glass

As a large-scale Cork pads manufacturer and supplier in China, “Raybone” have produced and exported Cork pads with adhesive for glass about 20 years. Cork pads with adhesive for glass, one of our main products, has competitive price advantage and cover most of the European and American markets in glass industry. We are looking for agents/distributors all over the world and hope for the mutual benefits from the long-term cooperation.

In the market of China Glass industry in China, “Raybone” is famous and professional on supplying Cork pads with adhesive for glass. Glass, windows, doors and mirrors are fragile. “Raybone” Cork pads with adhesive for glass are easy to be removed cleanly, yet adhered securely to architectural glass, auto glass, furniture glass, stone, windows & doors, during transporting, packing, storage and installation. Setting between the glass, the cork pads can absorb vibration, maintain position and prevent breakage.

Parameters of Cork pads with adhesive for glass:

Components	Plain cork, adhesive PE film, protective liner
Density of cork(KG/m³)	190±20
Hardness of cork	70-76 shore
Tolerance of thickness	0.2mm
Tolerance of length	0.5mm
Adsorbability(Newton)	3±1 N/sq.cm(+20℃)
Acidity & alkalescence	Neutral
Heat-resistant	100 Centigrade, over 2 hours, no residue on glass
Humidity-resistant	relative humidity 95%, over 2 weeks, no residue on glass
Wear	pressure 45KG, normal temperature, 180 days, no residue on glass
Recommend temperature of processing	+18℃up to +30℃
Storage	at 18℃and about 60% relative humidity of air, clean and dry in original cardboard, to protect against UV-radiation and too high humidity of air

Size of Cork pads with adhesive for glass:

Standard thickness: 3mm

Other normal thickness: 1.5mm、2mm、4mm、5mm

Standard size: 18x18mm

Other normal size: 10x10mm、15x15mm、20x20mm、40x40mm

Above can be customized as per your requests

Standard packing details

In sheet Cork pads with adhesive for glass:

MODEL NO.	PAD SIZE	THICKNESS	PAD/BOX	BOX SIZE(CM)	VOL.(CBM)	G.W.(KG)
SB-1030	10x10mm	3mm cork	117760pcs	343536	0.043	10.8
SB-1530	15x15mm	3mm cork	53700pcs	343536	0.043	10.5
SB-1830	18x18mm	3mm cork	35000pcs	343536	0.043	9.8
SB-2030	20x20mm	3mm cork	29000pcs	343536	0.043	10.6
SB-4030	40x40mm	3mm cork	7360pcs	343536	0.043	10.5

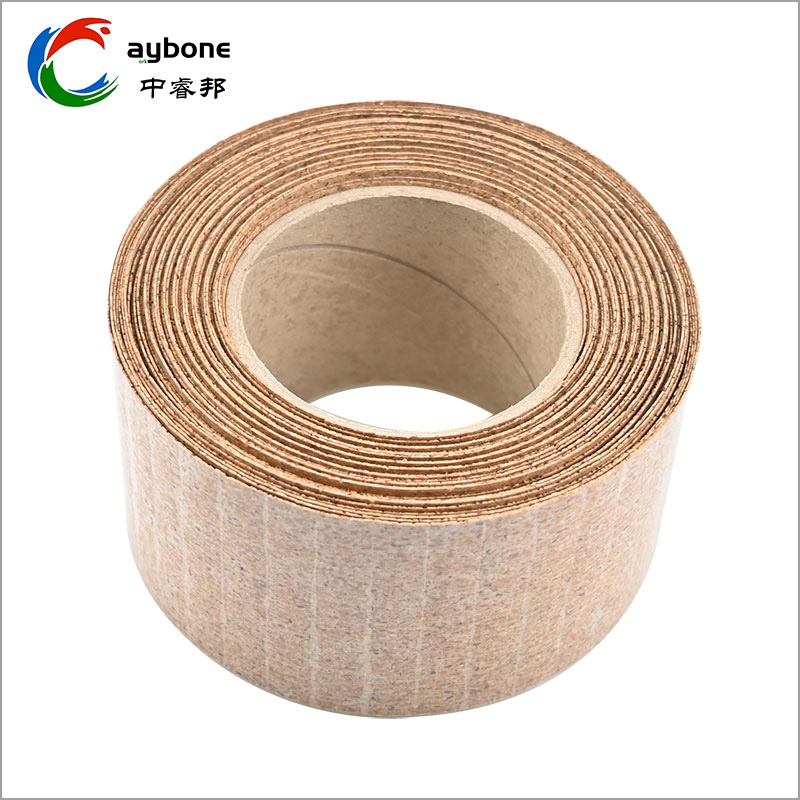

In roll Cork pads with adhesive for glass:

MODEL NO.	PAD SIZE	THICKNESS	PAD/BOX	BOX SIZE(CM)	VOL.(CBM)	G.W.(KG)
RB-1030	10x10mm	3mm cork	64800pcs (2 rolls)	303135	0.033	6.2
RB-1530	15x15mm	3mm cork	28800pcs (2 rolls)	303135	0.033	6.4
RB-1830	18x18mm	3mm cork	20000pcs (2 rolls)	303135	0.033	6.5
RB-2030	20x20mm	3mm cork	16200pcs (2 rolls)	303135	0.033	6.4
RB-4030	40x40mm	3mm cork	4050pcs (2 rolls)	303135	0.033	6.4

Installation Instructions of Cork pads with adhesive for glass:

Please place the cork pads on the edge of the glass, one pad per 30cm or 40cm, and totally 8 pads on the area of 1 square meter; more pads must be put on the middle of glass for the area more than 1 square meter and the actual quantity should be subject to the reality.
